Hardware
Freescale i.MX53 ARM® Cortex™-A8 800MHz
512MB DDR3 RAM
USB host powered (<500mA)
Dimensions: 65mm x 19mm x 6mm
user-controllable LED
7-pin breakout header
microSD card slot
100% open source hardware
Connectivity
High Speed USB 2.0 On-The-Go (OTG) with full device emulation
full TCP/IP connection to/from USB Armory via USB CDC Ethernet emulation
flash drive functionality via USB mass storage device emulation
serial communication over USB or physical UART

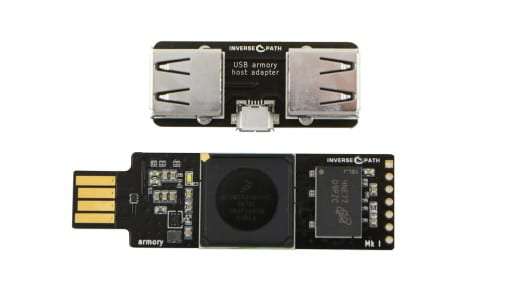

Includes: USB Armory, enclosure, host adapter
Notes: You will need to supply your own microSD card. The cap is no longer included as it was always loose or too tight – never quite the perfect fit.
Weight 1 lbs
Dimensions 6 x 4 x 1 in
GTIN
0636391493154
